Welcome to use this product
EZ700 is a large-capacity outdoor portable energy storage & supply station with rich functions and multiple interfaces. It supports a variety of fast charging protocols (it does not support Huawei's fast charging protocols) and can quickly charge your digital electronic products including mobile phones and computers etc. High power output can also work for electrical appliances. EZ700 has a variety of charging methods, it can be charged using solar PV or car charger in outdoors, and it can be charged indoors using mains electricity and achieve fast charging!
Before using the product, please read the user manual of this product and ensure that you use it correctly after fully understanding it. After reading, please keep the user manual properly for future reference. The manufacturer is not responsible for any damage caused by the user not using the product in accordance with the User Manual.
Product Description
This product has multi-port AC output and DC output ports, which can meet the needs of power supply requirements for mobile phones, laptops, cameras, TVs, various chargers, game consoles, DVD players, small electric tools and other equipment, and at the same time built-in LED lighting.
Product Parameters
Model No
| EZ1127-700W
| EZ1127-1200W
| EZ1127-2200W
|
Standard Voltage
| 22.4V
| 22.4V
| 44.8V
|
| Standard Capacity | 512Wh
| 1008Wh
| 2016Wh
|
Cell Type
| LiFePO4
|
| AC Output Voltage/Frequency | 220V/50Hz
|
USB Output Voltage/Frequency
| 5V/3A
|
DC Output Voltage/Current
| 12V/3A
|
Charging voltage
| 12V/15V/20V
| 12V/15V/20V
| AC90-240V
|
Photovoltaic input
voltage/current
| ≤30V/3A
| ≤30V/6A
| ≤60V/10A
|
Inverter efficiency
| 90-95%
|
| Discharge Temperature Range | -5ºC-55ºC
|
Size
| 306X171X202mm
| 412X203X232mm
| 410X278X280mm
|
Weight
| 5.6KG
| 11KG
| 23KG |

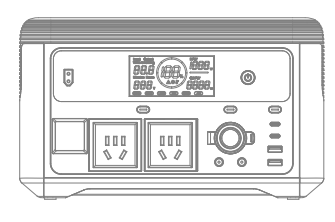

Product Schematic Diagram
1.Solar input | 6.AC output ON/OFF button | 11.USB-C1 |
2.LCD display screen | 7.AC input port | 12.USB-C2 |
3.DC output ON/OFF button | 8.AC outout ports | 13.USB-A |
4.Main power ON/OFF button | 9.DC output ports | 14.LED light ON/OFF button |
5.USB output ON/OFF button | 10.Cigarette lighter output port | 15.LED light |

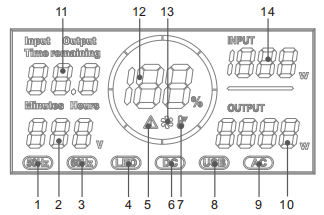

LCD Display Screen Schematic Diagram
1.AC output frequency 50Hz | 8. USB output |
2.AC output voltage | 9. AC output |
3.AC output frequency 60Hz | 10. Output power |
4.LED on | 11. Remaining charge/discharge time |
5. Fault warning symbol | 12. Remaining power percentage |
6. DC output | 13. Fan on |
7. High and low temperature warning symbols | 14. Input power |
Product Charging & Discharging
1) When the product is in power-off status, plug the charging cable into AC charging port, all icons on the display screen light up, after self-test is normal, it will enter charging mode, the display will stay on to show charging time, input watts, battery capacity in percentage and AC-in.
2) When charging, the fan will automatically adjust its speed based on temperature and the value of charging watts.
3) Ater it is fully charged, the capacity shows 100%, unplug the AC charging cable.
4) When discharging, the display screen will stay on to show the discharging time, output watts, battery capacity in percentage, and will automatically adjust the discharging time according to the output power.
5) When discharging, the fan will automatically adjust the speed according to the temperature and discharge watts.
* It is recommended to charge before the first time use.
* When the battery capacity is below 20%, it needs to be charged to maintain optimal performance and extend lifetime.
* Do not use the output ports of this product to charge the product itself
* Do not completely discharge the internal battery to avoid affecting battery life.
* When the high temperature or low temperature protection warning icon appears on the display, please stop using and shut down immediately.
Power ON and Power OFF
1) Short press the Main power ON/OFF button to control the whole system power ON/OFF and the display sceen ON/OFF.
2) After turning power ON, if no output for 30 seconds, the display screen will automatically turn off.
3) Turning off the main power button will turn off all functions
* While charging, the main power switch cannot be operated.
USB Output
1) After turning main power on, short press USB ON/OFF button to turn on USB output, and USB-out icon on the display screen lights up.
2) Connect the electronic devices by charging cable to the USB or TYPE-C output ports for charging
3) After use, short press the USB ON/OFF button to turn off the USB output.
4) Unplug the charging cable
* When the USB has no output exceeds 6 hours, the USB output will be automatically turned off.
LED Light
1) After turning main power on, short press LED light ON/OFF button to turn on LED light.
2) Continuously press LED button to switch the LED light mode, weak, medium, strong, SOS, strobe and off.
3) Long press the LED button can turn off the LED light directly.
* When LED light works continuously for more than 12 hours, the LED light will automatically turn off.
AC Output
1) After turning power on, long press AC output ON/OFF button for 3 seconds to turn on AC output function, and the AC-out icon on display screen lights up.
2) Connect the powered-off AC equipments to the AC outlet, and then turn on the AC equipment to start using.
3) After use, long press AC output ON/OFF button for 3 seconds to turn off AC output, and disconnect the AC equipment.
* When the battery capacity is less than 5%, the AC output will be automatically turned off.
* When the AC has no output exceeds 6 hours, the AC output will be automatically turned off.
* Successively short press the AC output button for 3 times to switch the frequency 50Hz/60Hz.
* When the AC output of this product is not in use, please turn off the AC output to save energy.
* Different countries or regions have different AC voltage and socket specifications, please confirm whether this product complies with the specifications of your electrical equipment before use.
* Do not plug the power cord into the AC socket of this product to charge the product by yourself
* When the AC output is short-circuited or the power of the load electrical appliances exceeds the AC output power of this product, the protection function of this product will be triggered. Please eliminate the short circuit or disconnect the electrical equipments first, and then turn the product on and off again to restore the AC output function.
DC Output
1) After turning power on, short press DC output ON/OFF button to turn on DC output function, and DC-out icon on display screen lights up.
2) Connect the powered-off DC devices to the DC output port, and then turn the DC devices on to start use.
3) Connect the powered-off DC devices to the cigarette lighter output port, and then turn the DC devices on to start use.
4) After use, short press DC output ON/OFF button to turn off DC output function and unplug the devices.
Solar Input (Optional)
1) Place the solar panel in a place exposed to direct sunlight.
2) Connect the Anderson plug of the solar panel to the solar input port of this product, charging starts and the icon PV-in lights up on display screen.
3) After charging is completed, unplug the solar panel from solar input port of this product.
* Do not expose this product to direct sunlight or humid environment.
Trouble Shooting
1) The product does not respond when turned on, and there is no output for DC, USB, AC, and LED lights. Solution:
· Disconnect all electrical equipments, then charge for 5 to 10 minutes, and then restart the product.
· Please ensure that the product is currently used within the normal temperature range.
2）The product can be turned on, but the corresponding output interface has no output (DC, USB, AC). Solution:
· Check whether the capacity of battery is too low. If so, please charge it in time.
· Check whether the electrical equipments are higher than the output power of this product, causing overload protection. Remove the load and restart.
· Check whether there is a short circuit between the output port and the electrical equipments, remove the equipment and then turn it on again
3）The product shuts down unexpectedly during use, solution:
· Overcharge, over-discharge, high or low temperature, overcurrent, short circuit, etc. cause the system protection, causing the product to shut down.
· Disconnect all electrical equipment, keep the product temperature within the normal temperature range, and charge the product for 5 to 10 minutes.
· Also check whether the electrical equipments is faulty, and then restart the product.
4）The product cannot be charged, solution:
· Check whether the product has activated temperature protection due to too high or too low temperature.
Frequently Asked Questions & Answers
Q: How long can the product be stored?
A: It can be stored for 6 months when the battery is fully charged. It is recommended to charge it every 3 months.
Q: How long does it take for the product to be fully charged?
A: It takes about 1.5 hours to charge from 5% to 95% using the AC charging cable that comes with this product.
Q: Can the product be used while charging?
A: This product supports charging and discharging simultaneously. The input power and output power will be automatically adjusted according to the usage.
Q: Does the product have temperature protection?
A: When the internal temperature is higher than 55℃ during charging, the protection will be turned on. When the internal temperature is higher than 60℃ during discharging, the protection will be turned on.
Q: Can the product be used to start a car?
A: The product cannot be used directly to start a car, but an optional charging cable can be used to charge the car battery. Generally, the car can be started after 5 to 10 minutes of charging.
