On-board Charging Hard Case Bluetooth Portable Power Station 2200W 2016Wh

Share to:

2200W 2016Wh On-board Charging Hard Case Bluetooth Portable Power Station

Brand Name ：ODM&OEM
Full charge time ：Approx 2 hours
DC output ：5525*2 13.6V=10A Total 136W max
AC output ：100-110V/~50Hz/60Hz 220-240V~50Hz/60Hz 2200W max
USB-A output ：4*USB 5V=3.0A/9V=2.0A/12V=1.5A,18W max
USB-C output： 5V=3.0A/9V=3.0A/12V=3.0A/15V=3.0A/20V=5A, 100W max*2
Life cycles ：≥3000 Times
Weight about ：22Kg
Product size ：423X300X317 mm
Power display ：LCD display, Remaining power Power of input & output

Model:
EZ1128-2200
Brand:
ENZY POWER

Availability:

Quantity:



Inquire Add to Basket

Power	EZ1128-2200
Battery Capacity	2016Wh (LiFePO4 cell)
Inverter	Biphase inverter/Pure sine wave 2200W
Fully Charge Time	Approx 2 hours (1500W fast charging)
Charge Method	Electric supply/Solar panel/Car charging
AC Output	100-110V/~50Hz/60Hz 220-240V~50Hz/60Hz 2200W max
USB-A Output	4*USB 5V⎓3.0A/9V⎓2.0A/12V⎓1.5A, 18W max
USB-C Output	5V⎓3.0A/9V⎓3.0A/12V⎓3.0A/15V⎓3.0A/20V⎓5A, 100W max*2
Power Display	LCD display, Remaining power(%) Power of input & output
DC Output	5525*2 13.6V⎓10A Total 136W max
LED Light	SOS, Lighting (3 levels), Alarm Light
Life Cycles	≥3000 Times
Product Size	423 × 300 × 317 mm
Weight	≈22Kg
A ccessory	Power cord, User manual, Accessory bag, Car charging cable (optional)
Certification	FCC/CE/PSE/UN38.3/UL/C-Tick

2200_01

2200W12016Wh Large capacity, playing in all scenarios

12 ports output simultaneously

Quickly power up multiple devices simultaneously

2200_03

Fully charge 2 kWh of electricity in 2 hours

Fast charging is even more powerful

Camping no longer has to worry about electricity problems

2200_05

2200W surging power 95% of outdoor appliances can be used

Car refrigerators, projectors, outdoor lighting, and speakers are all done.

2200_07

2200_09

Approx. 1hrs baking tray 1800W

Approx.95hrs Switch 19.5W

Approx.1.8hrs Electric cooker1000W

Approx. lhrs Hair dryer 1600W

2200_11

Approx.1.8hrs Rice Cooker1000w

Approx. 1hrs induction cooker 1800W

Approx.18hrs Projector 1000W

Approx. 1hrs Air fryer 1600W

Lithiumiron phosphate battery

It has 3000+ ultra-long cycles

Assuming you use it once a day, you can use it for up to ten years.

2200_13

BMS Intelligent cuarding

54 protection algorithms + 8 intelligent protection

to achieveintelligent supervision of voltage, current and

temperature, and also give you a worry-free experience of

using electricity with peace of mind.

2200_19

It can be used in multiple scenarios

Self-driving camping, photography, ffishing, aerial

photography,household power preparation, outdoor work

2200_21

Charge wherever you want

Multiple fast charging methods

You can use AC charging, solar charging, and car charging to

recharge anytime, anywhere without worry.

2200_23

AC Charging time is approx. 1.5 hours

100-120V~or220-240V~,50Hz160Hz,400W(Max)

2200_25

Car Charging time is approx.15 hours

13.6V/10A.136W(Max)

2200_27

Solar Charging time is approx. 5 hours 12-30V110A,450W(Max)

Packaging List 2200_29

展会拼图

工厂1

工厂图修改

流程图

Welcome to use this product

EZ2200Pro is a large-capacity outdoor portable energy storage & supply station with rich functions and multiple interfaces. It supports a variety of fast charging protocols and can quickly charge your digital electronic products including mobile phones and computers etc. High power output can also work for electrical appliances. EZ2200Pro has a variety of charging methods, it can be charged using solar PV or car charger in outdoors, and it can be charged indoors using mains electricity and achieve fast charging!

Before using the product, please read the user manual of this product and ensure that you use it correctly after fully understanding it. After reading, please keep the user manual properly for future reference. The manufacturer is not responsible for any damage caused by the user not using the product in accordance with the User Manual.

Product Description

This product has multi-port AC output and DC output ports, which can meet the needs of power supply requirements for mobile phones, laptops, cameras, TVs, various chargers, game consoles, DVD players, small electric tools and other equipment, and at the same time built-in LED lighting.

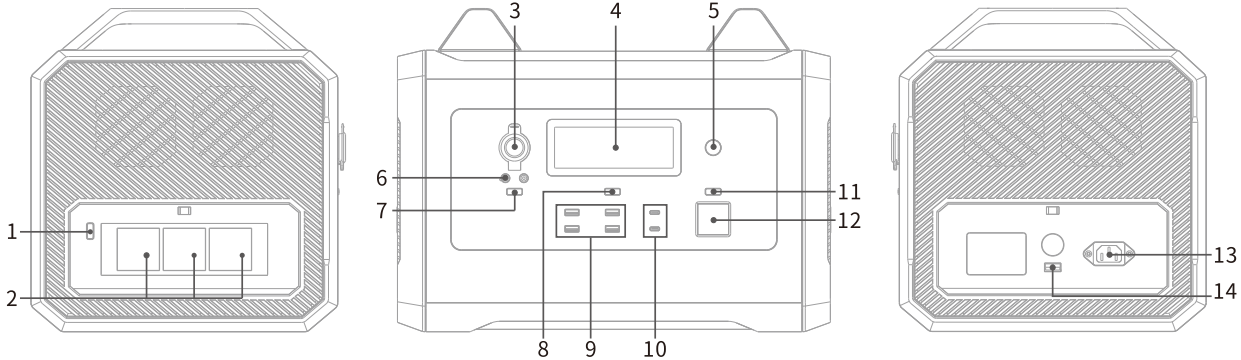

Product Schematic Diagram

1 AC output ON/OFF button	8 USB output ON/OFF button
2 AC output sockets	9 USB output ports
3 Cigarette lighter output port	10 TYPE-C output ports
4 LCD display screen	11 LED light ON/OFF button
5 Main power ON/OFF button	12 LED light
6 DC output ports	13 AC input port
7 DC output ON/OFF button	14 Solar panel input port (Anderson)

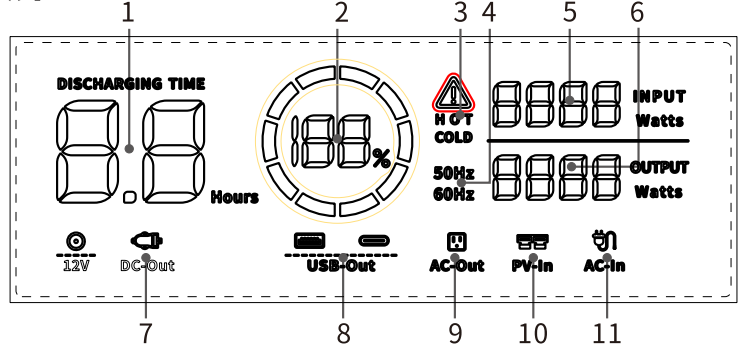

LCD Display Screen Schematic Diagram

1 Charging / Discharging time display	7 DC output on
2 Battery capacity	8 USB output on
3 High / Low temperature protection alert	9 AC output on
4 AC output frequency	10 Solar pv in
5 Input watts display	11 AC in
6 Output watts display

USB Output

1) After turning main power on, short press USB ON/OFF button to turn on USB output, and USB-out icon on the display screen lights up.

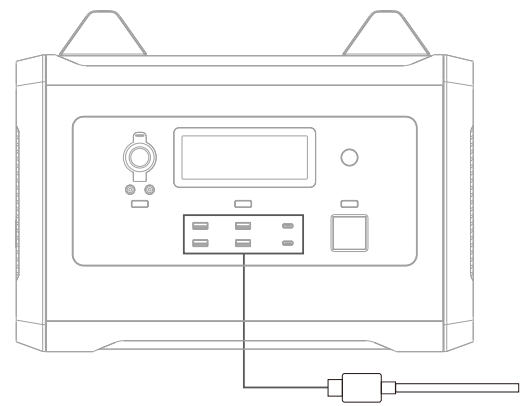

2) Connect the electronic devices by charging cable to the USB or TYPE-C output ports for charging

3) After use, short press the USB ON/OFF button to turn off the USB output.

4) Unplug the charging cable

* When the USB has no output exceeds 6 hours, the USB output will be automatically turned off.

LED Light

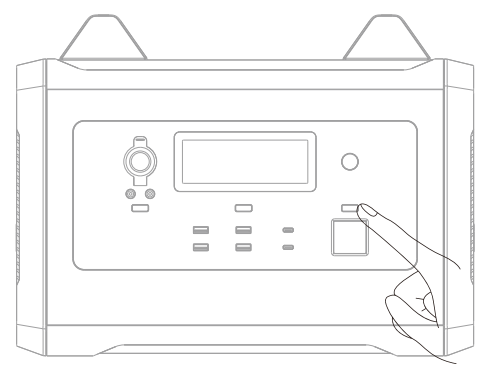

1) After turning main power on, short press LED light ON/OFF button to turn on LED light.

2) Continuously press LED button to switch the LED light mode, weak, medium, strong, SOS, strobe and off.

3) Long press the LED button can turn off the LED light directly.

* When LED light works continuously for more than 12 hours, the LED light will automatically turn off.

AC Output

1) After turning power on, long press AC output ON/OFF button for 3 seconds to turn on AC output function,

and the AC-out icon on display screen lights up.

2) Connect the powered-off AC equipments to the AC outlet, and then turn on the AC equipment to start using.

3) After use, long press AC output ON/OFF button for 3 seconds to turn off AC output, and disconnect the AC equipment.

* When the battery capacity is less than 5%, the AC output will be automatically turned off.

* When the AC has no output exceeds 6 hours, the AC output will be automatically turned off.

* Successively short press the AC output button for 3 times to switch the frequency 50Hz/60Hz.

* When the AC output of this product is not in use, please turn off the AC output to save energy.

* Different countries or regions have different AC voltage and socket specifications, please confirm whether this product complies

with the specifications of your electrical equipment before use.

* Do not plug the power cord into the AC socket of this product to charge the product by yourself

* When the AC output is short-circuited or the power of the load electrical appliances exceeds the AC output power of thisproduct, the protection function of this product will be triggered. Please eliminate the short circuit or disconnectthe electrical equipments first, and then turn the product on and off again to restore the AC output function.

DC Output

1) After turning power on, short press DC output ON/OFF button to turn on DC output function, and DC-out icon on display screen lights up.

2) Connect the powered-off DC devices to the DC output port, and then turn the DC devices on to start use.

3) Connect the powered-off DC devices to the cigarette lighter output port, and then turn the DC devices on to start use.

4) After use, short press DC output ON/OFF button to turn off DC output function and unplug the devices.

Solar Input (Optional)

1) Place the solar panel in a place exposed to direct sunlight.

2) Connect the Anderson plug of the solar panel to the solar input port of this product, charging starts and the icon PV-in lights up on display screen.

3) After charging is completed, unplug the solar panel from solar input port of this product.

* Do not expose this product to direct sunlight or humid environment.

Maintenance

1) Usage Environment

· the best charging temperature is 0~40℃, and the the best discharging temperature is -10~40℃

· storage temperature: -10~40℃

· storage humidity: 10%~70%

· properly ventilated when charging, please ensure there is at least 7.5cm of clearance around this product

· keep away from water, heat, and other metal objects

2) If you need long-term storage, please charge and discharge this product every 3 months (i.e. first discharge this product to 30%, and then charge it to 60%)

3) If the power of this product is less than 1% after use, please charge it to 60% before storing it. If left idle for a long time when the battery is seriously low, it will cause irreversible damage to the battery cell and shorten the lifespan of the product.

Trouble Shooting

1) The product does not respond when turned on, and there is no output for DC, USB, AC, and LED lights. Solution:

· Disconnect all electrical equipments, then charge for 5 to 10 minutes, and then restart the product.

· Please ensure that the product is currently used within the normal temperature range.

2）The product can be turned on, but the corresponding output interface has no output (DC, USB, AC). Solution:

· Check whether the capacity of battery is too low. If so, please charge it in time.

· Check whether the electrical equipments are higher than the output power of this product, causing overload protection. Remove the load and restart.

· Check whether there is a short circuit between the output port and the electrical equipments, remove the equipment and then turn it on again

3）The product shuts down unexpectedly during use, solution:

· Overcharge, over-discharge, high or low temperature, overcurrent, short circuit, etc. cause the system protection, causing the product to shut down.

· Disconnect all electrical equipment, keep the product temperature within the normal temperature range, and charge the product for 5 to 10 minutes.

· Also check whether the electrical equipments is faulty, and then restart the product.

4）The product cannot be charged, solution:

· Check whether the product has activated temperature protection due to too high or too low temperature.

Safety Guidelines

1. This product is not suitable for children.

2. Before using this product, please remove all outer packaging and untie the cables.

3. Please do not disassemble this product without permission to avoid unknown dangers.

4. Do not hit hard, dropped, or damaged in any other way to this product.

5. Do not place this product close to heat sources, such as fire sources or heating furnaces.

6. Do not use this product near flammable gases or flammable liquids.

7. Do not place this product on flammable items such as carpets, upholstery, paper, cardboard, etc.

8. Do not immerse this product in water or get it wet. Do not use this product in rain or humid environment.

9. This product will generate heat during use and must be properly ventilated. Please ensure there is at least 7.5cm of clearance around this product.

10. When using this product, please strictly follow the ambient temperature specified in this user manual.

11. Do not place other heavy objects on this product.

12. Do not forcibly block the fan during use, or leave this product in a non-ventilated or dusty space.

13. Do not use this product in an environment with strong static electricity or strong magnetic field.

14. Do not use this product at altitudes above 2000m.

15. This product has an AC output. Do not insert your hands or metal conductors into the AC power socket.

16. Please match the corresponding model according to the power of the electrical equipment. It is prohibited to use this product with overpower or overload.

17. Do not operate this product with a damaged power cord or plug. If damaged, replace the power cord or plug immediately.

18. Please select the solar panel for charging according to the electrical parameters specified in this user manual.

19. To reduce the risk of electric shock, power off and unplug all plugs on products before performing any maintenance or cleaning.

Frequently Asked Questions & Answers

Q: How long can the product be stored?

A: It can be stored for 6 months when the battery is fully charged. It is recommended to charge it every 3 months.

Q: How long does it take for the product to be fully charged?

A: It takes about 1.5 hours to charge from 5% to 95% using the AC charging cable that comes with this product.

Q: Can the product be used while charging?

A: This product supports charging and discharging simultaneously. The input power and output power will be automatically adjusted according to the usage.

Q: Does the product have temperature protection?

A: When the internal temperature is higher than 55℃ during charging, the protection will be turned on. When the internal temperature is higher than 60℃ during discharging, the protection will be turned on.

Q: Can the product be used to start a car?

A: The product cannot be used directly to start a car, but an optional charging cable can be used to charge the car battery. Generally, the car can be started after 5 to 10 minutes of charging.
