Outdoor energy storage power interface and button introduction

Product introduction

This product is a 512Wh large capacity 800W high power, 1.5 hoursof high-speed charging portable energy storage power supply,using high safety performance of LiFePo4 battery.

It can be used as a backup power supply in case of emergencypower cut,disaster, camping and vehicles, and can also providepower for various electric tools.

800W high power, pure sine wave AC output, can be used for household appliances such as dryers, microwave ovens, refrigera-tors,high-powerinduction cookers and it can also be used for otherelectronic devices such as personal computers.

Through the 400W ultra-fast charging,this model can be

fullcharged within 1.5 hours, The AC input/output voltage frequencycan automatic or manually switched between 50Hz/60Hz. Thisproduct also supports maximum 200W solar charge,allow you tocharge even when the power cut or in outdoor situations.

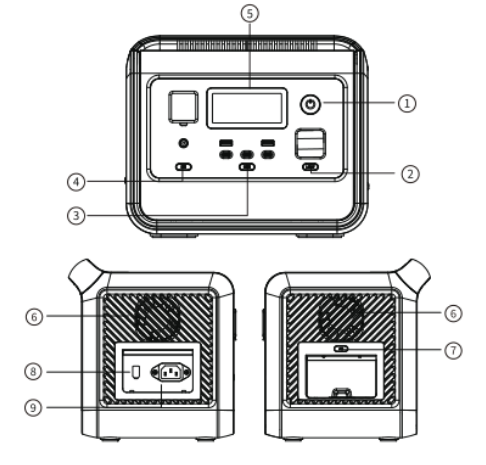

Button Function Introduction

①Main power control

② Light control

③ USB control

④ DC control

⑤ LCD display

@ Air intake/outlet

⑦AC on/off control(50Hz/60Hzswitching control)

8.XT60 input port(for solarpanel)

9. AC input port

①Main Power Control

Main Control for the whole system turn on/off.Operate method: long press the button for 3s to turn on/off thesystem.

② LED light control

Operate method:short press to turn on and change the light mode(sOS/Flash).

Notice: you can turn off the light by long press the button(1-2s) inany mode.

3.USB button

Operate method:short press to turn on/off.

4.DC button

Operate method:short press to turn on/off.

⑤LCD display

Present the remaining power and using data.

6.Cooling system

When the fans are working, please don't block the channel.

⑦ AC button(AC output, total share 800w)

Operate method:short press to turn on/off.Notice: 1.Please confirm the output voltage or frequency before using2.Long press the button for 3s to entry the frequency changing mode, 50Hz and60Hz will blink in the display, press again the button to chose the right frequency,wait till the frequency is not blinking, then you will get the frequency you want.3.Quick short press for 10 times to switch the voltage

8.Solar panelinput

Use the included XT60→>MC4 conversion cable to connect thesolar panel.

1.Solar panels can have a maximum input of 200W and a maximum voltage of 50V.

2.lf exceeding the maximum voltage leads to equipment damage, it is beyond thescope of warranty.

9 AC Input

Use wall socket to get 400W fast charging, which can full chargefrom 0 to 100% in 1.5 hours.

※The product can be charged directly by the wall socket, please do not use extensioncords and cable taps. When the product is charging, do not plug other products inthe same socket.

※Please do not plug several devices together in a extension socket at once, the currentwill be to high and bring damage to the cable and fire risk.

※lf the extension socket is plugged in to charge this product, please do not connectother electrical appliances to this socket, otherwise the household meter may trip.

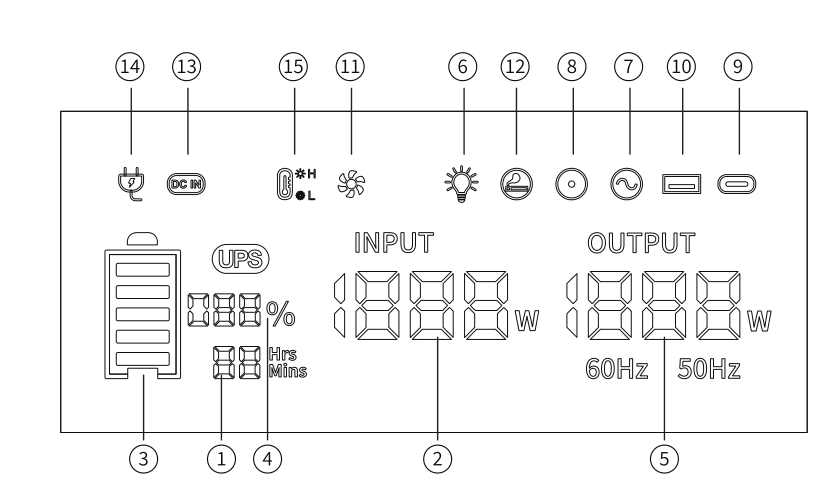

                                                  Display icon introduce

1. Charging/using time     2. Total input power      3. Battery Progress Bar

4. Power percentage    5. Total output power   6. LED light

7. AC output   8.  DC output    9. Type-c output

10.  USB output     11. Fan state   12.Cigar lighter output

13.  XT60 charging   14. AC charging   15. High/low temperatureprotection
