EZ800 user manual

                                        Portable Power Station

                                                          User Manual

Thank you very much for purchasing 800W power station. Be sure to read this manualcarefully before using the product in order to use the product correctly. This manual isneeded for product after-sales service. Please keep this manual together with the invoiceand other purchase certificates.

In order to ensure the safety of this product during transportation, this product is onlycharged about 30% when it is packaged. Please recharge when you get the product.The product can be charged directly by the wall socket, please do not use extension cordsand cable taps.

When the product is charging, do not plug other products in the same socket.

Warming

1. Please avoid using the product near high temperature, highhumidity, direct sun environment and fire place.

2. 2.Do not disassemble or modify this product, it will cause malfunctionand fire.

3. Please discard or recycle the product according to the methodsprescribed by local laws.

4.Be careful not to drop the product from a high place and give theproduct a strongimpact.

5.Keep or use the product in a place out of the reach of children.

6.Please use our company's genuine accessories. The damage causedby the use of non-genuine accessories cannot be repaired free ofcharge.

7.Please leave a space of about 30cm away from the side suction andexhaust ports, so as not to affect the heat dissipation of the product

8.When not using this product, please turn off the power and unplugthe power cord. Please avoid storing the product in a place exposedto direct sunlight with high temperature and humidity.

9.For long-term storage, please consume power from full power to nopower once every 3 months, and then recharge to about 50%.

10.Please do not use this product and its accessory cables andconnectingequipment when there is a defect.

11. Please do not store the product for a long time in extremely highand low temperature places such as in the car and in the fieldwarehouse to avoid shortening the battery life.

AC Output Parameter

Type of AC port                           AC output

   US/JP               100V~120V50Hz/60Hz

CN                    220V 50Hz

UK                     220V~240V50Hz/60Hz

EU                     220V~240V 50Hz/60Hz

KR                     220V 60Hz

Packing List

Product introduction

This product is a 512Wh large capacity 800w high power, 1.5 hoursof high-speed charging portable energy storage power supply,using high safety performance of LiFePo4 battery.

It can be used as a backup power supply in case of emergencypower cut,disaster, camping and vehicles, and can also providepower for various electric tools.

800W high power, pure sine wave AC output, can be used for household appliances such as dryers,microwave ovens, refrigera-tors,high-power induction cookers and it can also be used for otherelectronic devices such as personal computers.

Through the 400w ultra-fast charging,this model can be fullcharged within 1.5 hours, The AC input/output voltage frequencycan automatic or manually switched between 50Hz/60Hz. Thisproduct also supports maximum 200W solar charge,allow you tocharge even when the power cut or in outdoor situations.

①)Main power control

② Light control

③) USB control

④) DC control

⑤ LCD display

@) Air intake/outlet

⑦)AC on/off control(50Hz/60HZswitching control)

®) XT60 input port(for solarpanel)

@ AC input port

① Main Power Control

Main Control for the whole system turn on/off.Operate method: long press the button for 3s to turn on/off thesystem.

②LED light control

Operate method:short press to turn on and change the light mode(SOS/Flash).

Notice: you can turn off the light by long press the button(1-2s)inany mode.

③ USB button

Operate method:short press to turn on/off.

④DC button

Operate method:short press to turn on/off

⑤LCD display

Present the remaining power and using data.

⑥Cooling system

When the fans are working, please don't block the channel

⑦AC button(AC output, total share 800W)

Operate method:short press to turn on/off

Operate method:short press to turn on/off.Notice:

1. Please confirm the output voltage or frequency before using

2. Long press the button for 3s to entry the frequency changing mode, 50Hz and60Hz will blink in the display, press again the button to chose the right frequency.wait till the frequency is not blinking, then you will get the frequency you want.

  3.Quick short press for 10 times to switch the voltage.

⑧Solar panel input

Use theincluded XT60->MC4 conversion cable to connect thesolar panel.

1. Solar panels can have a maximum input of 200W and a maximum voltage of 50V

2. If exceeding the maximum voltage leads to equipment damage, it is beyond thescope of warranty.

⑨AC Input

Use wall socket to get 400W fast charging, which can full chargefrom 0 to 100% in 1.5 hours.

ЖThe product can be charged directly by the wall socket, please do not use extensioncords and cable taps. When the product is charging, do not plug other products inthe same socket.

※Please do not plug several devices together in a extension socket at once, the currentwill be to high and bring damage to the cable and fire risk.※Ifthe extension socket is plugged in to charge this product, please do not connectother electrical appliances to this socket, otherwise the household meter may trip。

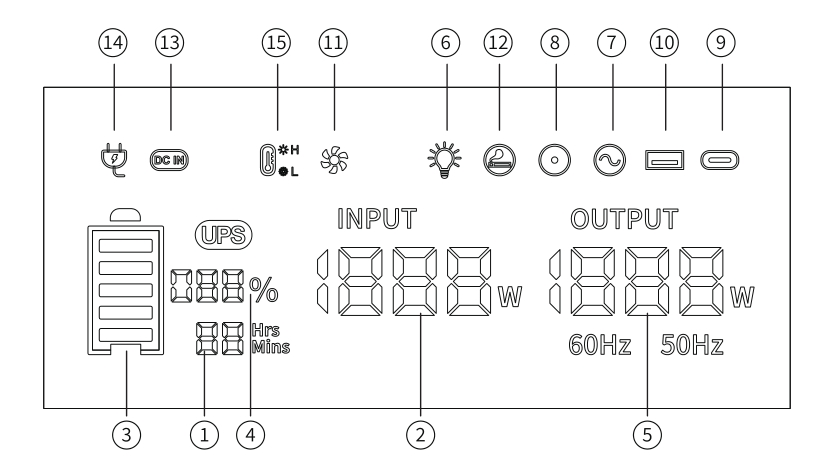

Display icon introduce

①Charging/using time    ② Total input power     ③ Battery Progress Bar   ④ Power percentage

⑤ Total output power      ⑥ LED light       ⑦ AC output      ⑧ DC output

⑨Type-coutput      ⑩ USB output  11. Fan state     12.Cigar lighter output

13.XT60 charging  14.AC charging  15.High/low temperatureprotection

Display Attention

When this icon light up. Please keep Air intake/outletunobstructed.

When this icon light up. Please note the device is now with※Hhigh/low temperature and will possibly stop working till thetemperature back to normal standard.

When this icon is blinking, represent that the Ac input is fault.

please recheck(Power/Hz/cable).

When the icon is blinking, represent theoutput is fault, please recheck.

UPS mode

• UPS function

This product has the bypass mode, does not need to pass throughthe battery, can directly output from the AC.

In UPS mode, when the AC input power of the mains is cut off dueto a power outage, the ac input power of the mains can be used inabout automatic switch to product battery power within 10 ms toensure AC output.

• UPS Connections

As shown in the figure below, connect the product between thesocket on the wall and the electrical appliances, and the powerof the product is in the ON state. When you turn on the power ofthe electrical appliances,it will directly uses the AC power of thepower grid.

In this state, when the power grid is cut off, it will automaticallyswitch to the product's internal battery to supply power.

※In UPS mode of The United States and Japan, the maximum power output of ACis below 800W, and the AC output exceeds 800W.The AC output icon" @"blinksindicating overload.

※In UPS mode of the China, United Kingdom, Europe and South Korea , AC output ofthe maximum power below 800W, AC output over 800W, " ©" AC output iconflashes indicating overload.

Solar panel connection

Our products can be connected to solar panels and can be chargedthrough solar panels.

※Solar panel charging power, according to the weather and climate conditions.ЖSolar panel voltage exceeding 50V will damage the equipment and may not becovered by warranty.

By solar panels

Connecting Pattern①

The area of charging

Connecting Pattern)The area of charging

Car charging

This product can be charged by the cigarette lighter in the car withan ACC cable (accessory: ACC hereinafter).

Turn on the power of this product, connect the ACC charging cableto the cigarette lighter in the car and the XT60 interface on the sideof the product, turn on the engine of the car, and the LCD of thisproduct will show the input power.

※On-board charging should be carried out with the car engine turned on. lf the engineis not turned on, the battery might run out.※Car charging is usually low power of 90-120W, and the charging time will be longIf you need quick charge,it is recommended to use the mains.

Specifications

Product name：800W Portable Power station

Product size：L*W*H=276*209*230mm

Product weight：6.5kg

Capacity：512Wh

AC Charging：50/60Hz 400W max

MPPT input：11.5-50V 8A 200W max

AC output：800W 50Hz/60Hz,pure sine wave

USB-A output：(QC 3.0 18W)x2

Type-C output：(PD 100W)x1;(PD 20W)x2

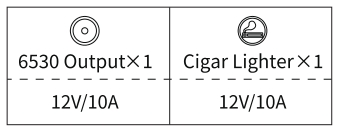

DC 6530 output：12V/10A

Cigar lighter output：12V/10A

Power off current：<500uA

Operating temperature：-10~40°C

Charging temperature：0~40℃

Environment humidity：<90%RH

Battery specification

Battery type：40135 LiFePo4

Single cell rated voltage：3.2V

Single cell rated capacity：20Ah

Battery pack rated voltage：25.6V

Battery pack output voltage：21V-29V

Battery pack rated capacity：512Wh

Troubleshooting table

Warranty

This product provides a 12-month warranty service from the date of purchase

• lf there is a quality problem within the range of normal use, we provide warrantyservice.

• After purchasing our company's products, please keep this product together within voices and other items. When maintenance services are needed, please provideinformation according to our company's request.

• In the case where the warranty is damaged or altered, and no stamp of the salesstore on the warranty, the warranty service may not be provided.

• Damage caused by use beyond the normal range of use is not covered by the warranty service.

• The content of the warranty scope shall be subject to the content recognized bythe company.

• Even within the scope of the warranty, sometimes it will be exchanged for productswith the same function. The shipping and repair fees for products outside thewarranty range shall be paid by the customer.

• Sometimes the specifications and functions of the product will be updated withoutprior notice.
