EZ2200 user manual

Portable Power Station

User Manual

Hi dear, thank you very much for purchasing and experiencing the 2000W portablepower station. Before operating this product, please carefully read the user manual for

proper operation.

According to the transportation requirements of the international customs for batteryproducts, the battery level of this product is only less than 30% when it leaves the factory.Please fully charge the product after unpacking it to start the experience tour of 2000W.

Precautions For Use

1. Please avoid long-term storage and use of this product in enviro mentswith high temperature and humidity or direct sunlight to avoid shortenedbattery life and other failures. The product should not be close to the firesource,otherwise it may cause a major fire or accident.

2. This product must not be disassembled or modified. lmproper opera.

tion may cause product malfunction or even fire.

3. Be careful not to drop the product.

4. Please store or use this product out of the reach of children, other wisethe product may be dropped or collided and cause bodily injury tochildren.

5.Please use our original accessories, and we will not guarantee thedefective products caused by the use of non-original accesso ries.

6.Please directly plug in the wall socket to charge the product, do notuse extension cords or cable taps, otherwise there is a risk of damage tothe extension cords and cable taps or even a fire; lf the extension socketis plugged in to charge this product, please do not connect other electri.cal appliances to this socket, otherwise the household meter may trip.

7. When the product is not in use or idle, please turn it off and unplugthe power cable. lf it needs to be idle for a long time, please consume theproduct from a fully charged state to an uncharged state, then rechargeit to about 50% of the battery level and store it. in order to prolong the lifeof the product, please take three months as a cycle, operate and keep itin this way.

8.lf the product reaches scrap conditions, please discard or recyclethe product in accordance with local laws.

Packing List

Product Introduction

This product is a portable power device with a built-in battery packwith charge/discharge function.lt includes both AC output interfaceand DC output interface such as USB output, cigarette lighter outputDC output, etc.lt also has functions such as display, interface control,protection, and alarm. Moreover, this product can be charged by mainsAC, solar panels and vehicle charging.

The following are the main features of this product:

• Equipped with LiFePo4 battery, the battery capacity is as high as2048Wh, and the safety level is extremely high.

• 2000W pure sine wave AC output can meet almost all daily electronic equipment and small household appliances.

• Two-way fast charging technology is adopted to fully charge theproduct in about 2 hours.

• A great variety of output interfaces such as USB-A, Type-C PD3.0DC5521,cigarette lighter output, etc., meet many different applica-tion scenarios.

• In UPS mode, the switchover time is less than 10ms which is trulyseamless switching.

• Multiple protection mechanisms such as battery, circuit, structure,etc., guarantee the product safety.

Button Function Introduction

① Power ON/OFF Button

② LED Light Button

(switch to different mode)

③ USB ON/OFF Button

④ DC ON/OFF Button

⑤ LCD Screen

⑥ Cooling Air Duct

⑦ AC Switch

(manually switch to 50/60Hz)

⑧ Solar Input Port( for solar panel)

⑨ AC Input

⑩ Overload Protection Button

① Power ON/OFF Button

Instructions: Press and hold the power button for 3S to wake up thesystem, turn on the LCD display, and press and hold again for 3S toturn it off.

② Light Button

Instructions: Short press the Light Button, the LED lights are all on;short press again, the LED light enters the SOS mode, short press inturn, enter the strobe mode, and finally the LED light turns off (LED inany mode, long press the light button for > 1 second , directly turn offthe LED light.

③ USB ON/OFF Button

Instructions: Short press the USB button to turn on the USB outputport, and short press again to turn it off.

④ DC ON/OFF Button

Instructions: Short press the DC button to turn on the DC output port.

and short press it again to turn it off.

⑤ LCD Screen

Display the product's battery level and usage status tips.

⑥ Cooling Suction/Exhaust Port

 When the product reaches the temperature threshold set by the system,the cooling fan will automatically run, accompanied by a certain fannoise (fan noise below 60dB is normal). Do not block the coolingsuction/exhaust port during use of this product, and do not place anyobject within the range of 30CM.

⑦ AC Switch (AC output port, the sum of electrical load power should be <2000W)

Tap the AC button to enable the AC output function. Since there maybe differences in the AC output frequency in different regions, if youneed to switch the frequency, the operations are as follows: Press andhold the AC button for 3 seconds to enter the frequency switching mode, the 50Hz or 60Hz icon will flash on the display, short press the AC button again to select 50Hz or 60Hz; when the icon stops flashingand displays 50Hz or 60Hz,it indicates the switch is successful.

⑧ Solar Input Port

This interface supports solar panel input or car charger input. Fordetails, please refer to "Solar Panel Connection"  of this manual and "Car Charging"

⑨ AC Input

To charge the product by a household socket can achieve 1100W fastcharging. lt only takes about one and half hours to fully charge from 0to 100%.When charging in this way, please pay attention to the follow-ing points:

* Please directly plug in the wall socket to charge the product, do not use extension-cords or cable taps, otherwise there is a risk of damage to the extension cords andcable taps or even a fire.

Ж lf the extension socket is plugged in to charge this product, please do not connectother electrical appliances to this socket, otherwise the household meter may trip.

⑩ Overload Protection Button

When the power supply current is unstable due to lightning or otherreasons, and there is a large current input at the AC Input, in order toprotect the product, the overload protection function(safety circuitbreaker) will activate and cut off the AC input port.

Please follow the sequence below to restore the AC input function:1) Turn off the power button and unplug all ports.2) After confirming that there is no abnormality in each part, turn on the power button3) Press the overload protection button, connect the AC Cable to restore the AC input

Introduction of Display Interface

1.Remain Using/Recharging Time      2.Fan Status      3.High/Low Temperature Protection

4.Battery Level Percentage               5.Input Power in Total      6.Output Power in Total

7.LED Light      8.AC Output      9.XT90 Input     10. PD3.0 Output

11. USB Output    12. Connected to the AC Mains     13.DC(12V)0utput

14.Cigar Lighter(12V) Output     15.XT-60 output

Screen Display Description

Power display:When the product is in the charging state, thebattery progress bar rotates continuously in the form of a clockwisemarquee, and the battery level percentage gradually increases; whenthe product battery level is 0, the battery level percentage icon flash-es.

Input and output status: When the product is working, the total inputpower, total output power and the cursor corresponding to the workingarea will be displayed on the screen.

Alarm prompt: See the following troubleshooting sheet for details.

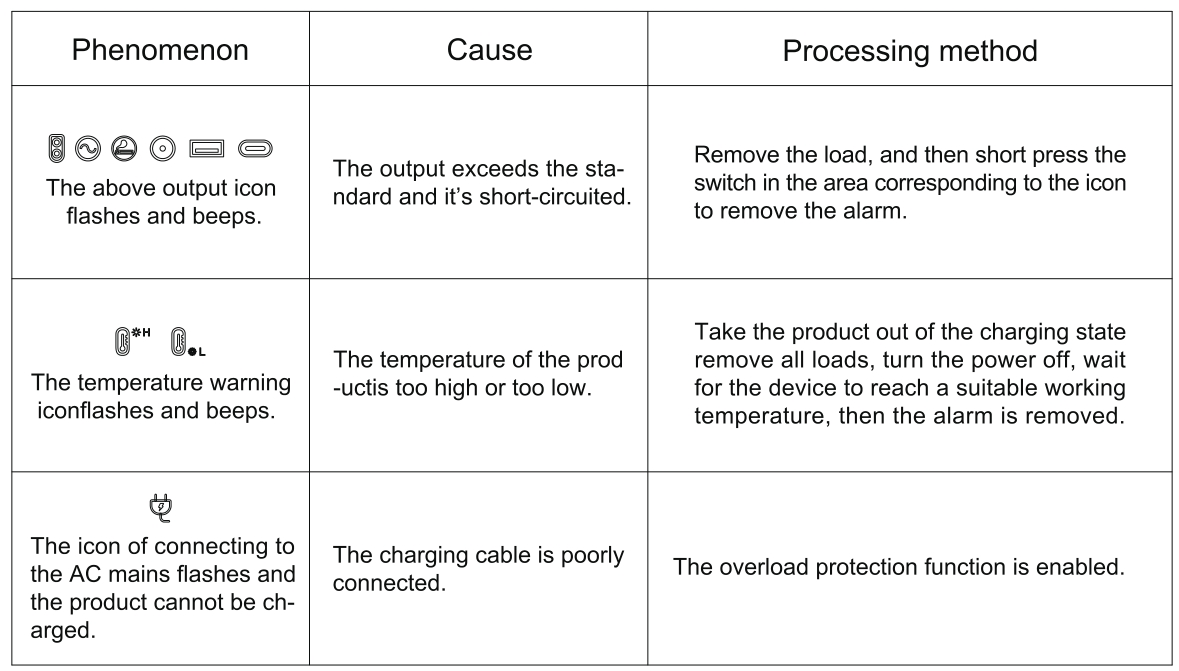

Troubleshooting table

UPS mode

• UPS Feature

This product has the function of backup uninterruptible powersupply.The usage and operation precautions are as follows:

As shown in Pic 1 below, when the product is connected between the wall socketand the electrical appliance, and the power supply and AC switch of the product are inthe ON state, the product enters the UPS working mode. The AC mains in the socketsupplies power to the electrical appliance through the bypass circuit, and also chargesthe product.

※In UPS mode of The United States and Japan, the maximum power output of ACis below 1200W, and the AC output exceeds 1200W.The AC output icon" ©"blinksindicating overload.

※In UPS mode of the China, United Kingdom, Europe and South Korea , AC output ofthe maximum power below 2000W,AC output over 2000W,"@" AC output iconflashes indicating overload.

As shown in Pic 2 below, when the AC mains at the socket end is disconnected, thebypass output inside the product stops working, the product switches to a bidirectionalinverter circuit within 10ms, and the circuit outputs supply power to the electricalappliance to ensure that the electrical appliance is uninterrupted and works normallyduring the process.

Connection of Solar Panels

Under the condition of light, this product can be connected to thesolar panel and getting charged. The charging power is determinedaccording to the conditions of light and weather.

In this charging mode, we support solar panel input within 500W, andthe input voltage cannot exceed 50V,otherwise the product abnormalitycaused by it will not be covered by the warranty.

• We recommend the following two charging schemes:

Scheme one:

Portable Power Station Charging Area

Scheme Two:

Portable Power Station Charging Area

Car/Vehicle Charging

When the car is in the process of starting, connect the car chargingport on the car and the product through the car charging cable tocharge the product. The connection method is shown in the picturebelow:

This product supports 12V/24V car charger charging, please payattention to the following two points when using this method to charge.

Ж Please use it when the car started, otherwise the car battery may be exhausted※ Vehicle charging power is usually in the range of 90W-120W, and the charging timeis long.

If fast charging is required, the AC mains charging is recommended.

Product Specifications

Product Name：Portable Power Station

Dimension：L*W*H=392*279*323mm

Weight：22.3kg

Capacity：2048Wh

AC Charging：AC Mains Input, 1100w max

MPPT Input：11.5-50V 25A below 500W max

AC Output：50/60Hz(switchable),rated 2000W, pure sine wavewith overload, short circuit protection

USB-A ① Output：5V/2.4A X 2

USB-A ② Output：(PD 18W)X2

Type-C Output：(PD100W)X2 Included PD3.0 protocol

DC 5521 0utput：12V/3AX2

XT-60 output：12V/25A

Car Charging Output：12V/10A

Shutdown Current：<500uA

Working TemperatureEnvironment Humidity：-10~40°C

Cycle Times：>3500 Times

Battery Specifications

Cell type：40135 LiFePo4

Rated voltage of single battery：3.2V

Rated capacity of single battery：20Ah

Rated voltage of battery pack：51.2V

Output voltage range of the battery pack：43.2-57.6V

Rated capacity of battery pack：2048Wh

Warranty Services

This product provides a 12-month warranty service from the date ofpurchase.

1. lf there are quality issues arising from normal use, our Companywill provide warranty services.

2. After buying our Company's products, please keep them togetherwith invoices, etc, When maintenance services are required, pleaseprovide information according to our Company's request.

3. Damage caused by abnormal use is not covered by the warrantyservice.

4. The warranty scope should be subject to what is recognized byour Company.

5.Even within the warranty scope, products with equivalentfunctionality will sometimes be exchanged. The transportation andmaintenance costs for products outside the corresponding warranty scope should be borne by customers.

6. Sometimes, the specifications and functions of the product maybe changed without prior notice.
