EZ1200PRO user manual

Portable Power Station

User Manual

Note: Different versions, AC socket styles and quantities are different, based on the real thing.

Thank you very much for buying a 1,200 W portable power station. Before using theproduct, be sure to read this Manual carefully in order to use the product correctly.This Manual is required in case of product compensation. Please keep it properlytogether with the certificate of purchase such as the invoice.To ensure the safety of this product during transportation, this product onlycharges about 30% during packaging. Please charge it immediately after opening

for use.This product can be charged directly with sockets on walls or other locations.Please do not use extension cords or cable taps. When using two or more socketsfor charging, do not charge products other than this product with the same socket.at the same socket.

Disclaimer

Before use, please read the User Manual of this product to ensurecorrect use after complete understanding. After reading, please keepthe User Manual properly for future reference. lf you fail to operatethis product correctly, you may cause serious harm to yourself orothers, or result in product damage and property damage. Once youuse this product, it is deemed that you have understood, recognized.and accepted all the terms and contents of this Manual. The usershould promises to be responsible for their actions and allconsequences arising therefrom. Our Company should not be liablefor any losses arising from the user's failure to use the product inaccordance with the User Manual.

In compliance with laws and regulations, our Company has the finalright to interpret this Manual and all related documents of thisproduct.

Safety Instruction

1. lt is strictly prohibited to place this product near a heat source, such as a firesource or heating furnace while working.

2. lt is strictly prohibited to let this product come into contact with any liquidDo not immerse this product in water or get it wet, Do not use this product inrain or humid environments.

3. lt is prohibited to use this product in environments with strong staticelectricity or strong magnetic fields.

4. lt is prohibited to disassemble or puncture this product with sharp objects in any way.

5. lt is prohibited to use wires or other metal objects that will cause short circuits in this product.

6. Please do not use components or accessories from unofficial channels.

   lf youneed to replace them, please check the relevant purchase information throughthe official sales channel.

7. When using this product, please strictly follow the ambient temperature specified in this User Manual.

8. lt is prohibited to stack other heavy objects on this product.

9. lt is prohibited to forcibly block the fan during use, or leave this product in anunventilated or dusty place.

10. Please avoid collision, drop, and severe vibration. lf there is a seriousexternal impact, please immediately turn off the power and stop using theproduct. Please secure the product during transportation to avoid vibration andim

11. lf the product accidentally falls into the water during use, please place it in asafe and open area, and keep it away until it completely dries. Do not reusedried products, and please dispose of it properly in accordance with themethods stated in the "Discarding" section of this Manual. lf the productcatches fire, please use fire extinguishing equipment in the order as follows:water or mist, sand, fire blanket, dry powder, carbon dioxide fire extinguisher.

12. lf there is dirt on the interface of this product, please use a dry cloth to wipeit clean.

13. Please place this product carefully to prevent damage caused by productdumping. if the product is dumped and severely damaged, please immediatelyturn it off, place the battery in an open area, keep it away from combustiblesand people, and dispose of it in accordance with local laws and regulations.

14. During use and storage, do not allow children and pets to approach thisproduct.

15. Store the product in a dry and ventilated place.

16.lt is recommended to use a moisture-proof bag together in dampenvironments (such as by the seaside or water edge) to avoid soaking in water.If water is found inside the product, it should not be used/turned on again.Before touching the product, please take measures to prevent electric shock.Please immediately leave it in a safe, waterproof and open area and contactofficial customer service for treatment.

17. This product is not recommended for supplying power for medical devicesrelated to personal safety, including but not limited to Continuous PositiveAirway Pressure (CPAP), Extracorporeal Membrane Oxygenation (ECMO), etc. lf itis used for general medical devices, please pay attention to the battery level toensure that the power is not used up.

18. The products will inevitably generate electromagnetic fields during use,which may affect the normal operation ofimplanted medical devices orpersonal medical devices, such as pacemakers, cochlear implants, hearing aids,defibrillators, etc. lf these medical devices are used, please consult theirmanufacturer for restrictions on the use of the relevant devices to ensure thatthis product maintains a sufficient safety distance from implanted medicaldevices (such as pacemakers, cochlearimplants, hearing aids, defibrillators,etc.) during operation.

19. The power supply is connected to the load of the refrigerator in normalmode. Since the power fluctuation of the refrigerator may cause the automaticshut-down of power supply. lt is not recommended to use the refrigerator forstoring drugs, vaccines, or other high-value items.

AC Output Parameter

Note: Different versions, AC socket styles and quantities aredifferent, based on the real thing.

Packing List

Productintroduction

This product is a portable power station, which uses lithium ironphosphate battery with high safety performance.It has AC and DC output functions, and is applicable for householdemergency power backup, travel, emergency disaster relief, etc.

Function lntroduction

①Main power switch

②Light switch

③AC output switch

④Screen wake-up switch

⑤DC output switch

⑥Cooling suction/exhaust port

⑦Overload protector

⑧ACinput port

⑨Dcinput port

① Main power switch

Usage: Long press the main power switch button for 3-6 seconds toturn on the device, and then long press again for 3-6 seconds toturn off the device.

② Light switch

Usage: Short press the light switch button to enter the ambient lightmode, short press again to enter lighting mode; short press insequence to enter SOS mode (flashing); continue to short press thebutton to turn off the light.

③ AC output switch

Gently press the AC button to turn on the AC output function.

④ Screen wake-up switch

Display the product's battery level and usage status prompts.

⑤DC output switch

Usage: Short press the DC button to open the DC panel output port,and then short press again to close it.

DC5521x2：12V/3A

Cigarette lighterx1：12V/10A

USB-Ax2：12W

USB-Ax2(Fast charging)：18W

TYPE-Cx2：PD-100W

⑥ Cooling suction/exhaust portWhen the product reaches a certain temperature, the cooling fanwill operate automatically. Do not block the cooling suction/exhaustport during use, and do not place anything within the range of 30cm.

⑦ Overload protector

This product has an overload protection function. When the productexperiences an overload, the AC input port will be cut off due tooverload protection. Please restore the AC input function in theorder as follows:

1. Turn off the power and unplug all port connecting wires;

2. Press the overload protector button;

3. After confirming that there are no abnormalities in each part, connect the AC line to restoreAC input.

⑧ AC input port

1. This product can be charged directly with sockets on walls or otherlocations. Please do not use extension cords and cable taps to connectmultiple devices at the same time to prevent cable overload.2. When several devices are charged simultaneously with cable taps, it maycause large current flow, which may result in cable overheating and firerisk.

3. Do not connect other devices to the same socket when charging thisproduct. When the power of the same wiring exceeds 2,300 W in a typicalhousehold, the safety circuit breaker will activate.

⑨ DC input port

Connect the solar panel with an XT60 conversion cable.

1. The voltage range of the solar panel is 12 V-80 V, with a maximum power of 600 W;

2.  lf the device is damaged since the voltage exceeds the maximum voltage, it will not becovered by the warranty.

Introduction of Display Interface

① Total input power

② Battery level Percentage

③ Total output power

④ Bluetooth (optional)

⑤ Low temperature icon

⑥ High temperature icon

⑦Fault icon

⑧ Overload protection icon

⑨ AC display icon

⑩ Cigarette lighter output icon

11. TYPE-C output icon

12.USB-Aoutputicon

13. Remaining usage/charging time

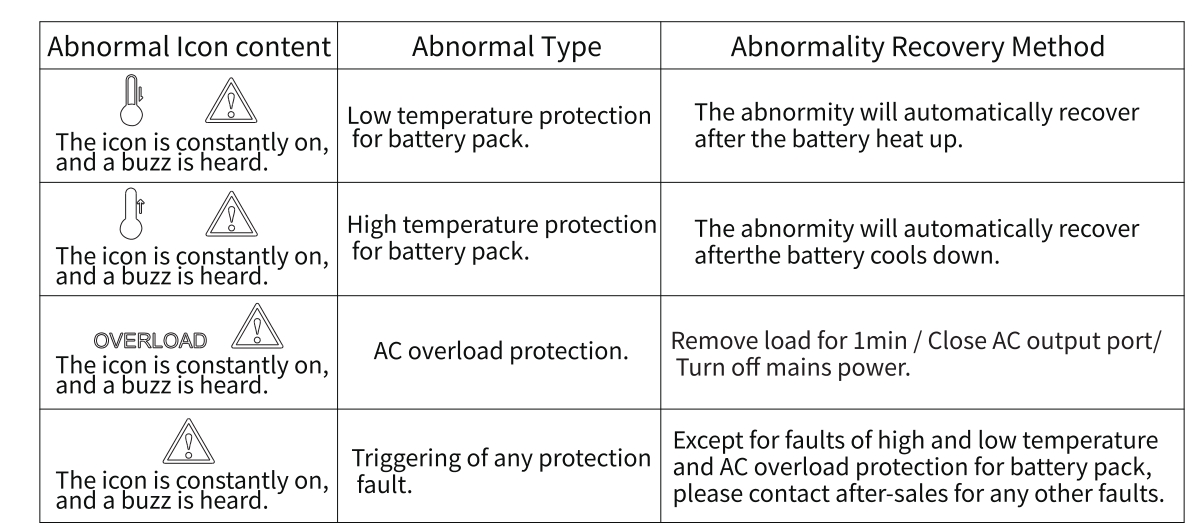

Fault Display and Handling

EPS Function

This product supports the EPS (Emergency Power Supply) function. When youconnect the AC charging cable to the power grid and the AC input port of thisproduct, the electrical appliances can work by using the AC output port of thisproduct (at this time, the AC power comes from the power grid, instead of thebattery). When the power grid suddenlyinterrupts the power supply, this productcan automatically switch to the battery power supply mode within 30 ms.This function is a non-professional UPS function and does not support 0 msswitching. Please do not connect the product to devices that require continuouspower supply, such as data servers and workstations, or confirm compatibility aftermultiple tests before using it. lt is recommended to use only one device during use,rather than multiple devices, to avoid overload protection of this product, lf devicescannot operate normally or data is lost due to failure to follow the instructions, ourCompany will not bear the corresponding responsibility.

Connection of Solar Panels

Our Company's products can be connected to solar panels forcharging, with a voltage range of 12 V-80 V and a maximum powerof 600 W.

1. The charging power of the solar panel is determined by weather and climateconditions;

2. lf the voltage of the solar panel exceeds 80 v, it will damage the device and may not becovered by the warranty.

• Solar charging

Plan 1

Device charging area

Plan 2

Device charging area

Vehicle charging

This product uses an ACC charging cable and can be charged through thecar cigarette lighter (accessories: below).Turn the power switch of this product to the ON state, connect the ACCcharging cable to the car cigarette lighter and the Anderson connector onthe side of the product, and turn on the vehicle engine. The LCD of thisproduct will display the input power.

1. Please conduct the vehicle charging while the vehicle engine is started. lf the engine isnot started, it may cause the vehicle's battery to run out of charge.

2. 2. In general, the time for vehicle charging is relatively long when low power levelsbetween 90 W and 120 W are used. lffast charging is required, it is recommended to usemains electricity.

Product specification

Specification and model：EZ1200pro

Size：LxWxH=330x225x30lmm

Weight：About 13kg

Battery capacity：1024Wh

AC Charging：Main powerinput, Chinese/European/South African 1000W Max,American/Japanese 800W Max

MPPT input：600W Max

AC Input：50/60Hz(switchable), rated at 1200W, pure sine wavewith overload and short circuit protection

USB：USB-A x4(Quick charge)18W

Type-C：PD100W x2

DC 5521：12V/10A x2

Vehicle charging output：12V/10A

Working temperature：-10°C~40°C

Storage temperature：-20°C~45°C

Ambient humidity：<90%RH

Warranty Services

This product provides a 12-month warranty service from the date ofpurchase.

1. lf there are quality issues arising from normal use, our Companywill provide warranty services.

2. After buying our Company's products, please keep them togetherwith invoices, etc, When maintenance services are required, pleaseprovide information according to our Company's request.

3. Damage caused by abnormal use is not covered by the warrantyservice.

4. The warranty scope should be subject to what is recognized byour Company.

5.Even within the warranty scope, products with equivalentfunctionality will sometimes be exchanged. The transportation andmaintenance costs for products outside the corresponding warranty scope should be borne by customers.

6. Sometimes, the specifications and functions of the product maybe changed without prior notice.
