Button Function Introduction of 3600W solar generator

1. Power ON/OFF Button

2. USB ON/OFF Button

3. LED Light Button(switch to different mode

4. DC ON/OFF Button

5. LCD Screen

6. input Power Knob

7. Cooling Air Duct

8. AC Button   (manually switch to 50/60Hz)

9. XT90 Input Port( for solar panel)

10. AC input

11. Overload Protection Button

1)Power ON/OFF Button

Instructions: Press and hold the power button for 3S to turn on/off the whole system.

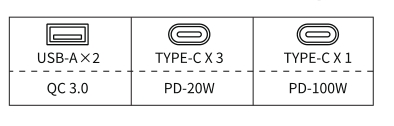

(2)USB ON/OFF Button

Instructions: Short press the USB button to turn on the USB outputport, and short press it again to turn it off.

3)Light Button

Instructions: Short press the LlGHT button, the LED light is on; shortpress it again, the LED light enters the SOS mode, short press in turn,enters the strobe mode, and finally the LED light is turned off (LEDlight in any mode, long press the LlGHT button for > 1 second , directlyturn it off ).

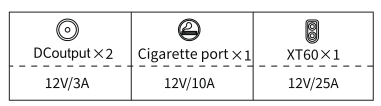

4)DC ON/OFF Button

Instructions: Short press the DC button to turn on the DC output portand short press it again to turn it off.

5)LCD Screen

Display the product's battery level and usage status tips.

6)Input Power Knob

When the product is connected to the AC mains for charging, thepower is adjusted according to the actual input voltage. The clockwiserotation increases the input power, and the counterclockwise rotationdecreases the input power. lt is worth noting that charging this productat low power is beneficial for extending battery life.

7)Cooling Suction/Exhaust Port

When the product reaches the temperature threshold set by thesystem, the cooling fan will automatically run, accompanied by acertain fan noise (fan noise below 60dB is normal). Do not block thecooling suction/exhaust port during use of this product, and do notplace any object within the range of 30CM.

8)AC Button

Tap the AC button to enable the AC output function. Since there maybe differences in the AC output frequency and voltage in differentregions, if you need to switch the frequency and voltage, the opera-tions are as follows:

A:Press and hold the AC button for 3 seconds to enter the frequencyswitching mode, the 50Hz or 60Hz icon will flash on the display, shortpress the AC button again to select 50Hz or 60Hz; when the icon stopsflashing and displays 50Hz or 60Hz, it indicates the switch is success-ful.

B:Quickly press the AC button for 10 times to select voltage

9)XT90 Port (Solar Panel Input)

This interface supports solar panel input or car charger input.

10) AC Input

To charge the product by a household socket can achieve1500W/2200W fast charging. lt only takes three hours to fully chargefrom 0 to 100%.When charging in this way, please pay attention to thefollowing points:

Ж Please directly plug in the wall socket to charge the product, do notuse extension cords or cable taps, otherwise there is a risk ofdamage to the extension cords and cable taps or even a fire.Ж If the extension socket is plugged in to charge this product, please do not connect other electrical appliances to this socket, otherwisethe household meter may trip.

11) Overload Protection Button

When the power supply voltage is unstable due to lightning or otherreasons, and there is a large voltage input at the AC Input, in order toprotect the product, the overload protection function(safety circuitbreaker) will activate and cut off the AC input port.

Please follow the sequence below to restore the AC input function:

1、 Turn off the power button and unplug all ports.

2、 After confirming that there is no abnormality in each part, turn on thepower button.

3、Press the overload protection button, connect the AC Cable torestore the AC input.
